  3. ball mill

ball mill

Processing ability:for minerals powder making

Max feeding size:25 mm

Product Fineness:

Range of application:ball mill can be widely used in barite, quartz, feldspar, mica, calcite, talc, apatite, gypsum, fluorite, limestone, dolomite, diatomite, ceramic soil, clay, marble, granite, fly ash, kaolin, calcium carbonate, slag, bauxite, glass, and other more than 300 kinds of minerals powder making

Live Chat Get Latest Quotation
PDF Download

  • Overview

    Ball Mill Introduction

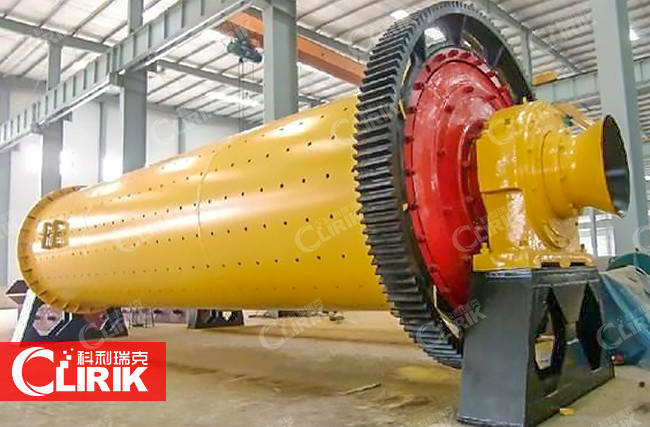

    ball mill

    Brand: Clirik
    Application: Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
    Input Size: Below 25 mm.
    Output Size: Could be adjusted between 0.074-0.89 mm.
    Capacity: According to your fineness choose, the capacity is about 20-200 t/h.

  • Benefit

    Ball Mill Advantages

    ball mill

    1.Using large diameter double row spherical roller bearing, reduce friction, reduce the energy consumption of 20-30%.

    2.End cover structure, large caliber inlet and outlet, the processing capacity is increased by 15-20%.

    3.simple structure, split installation.

    4.without inertial impact, the equipment runs smoothly, and reduces the downtime of the mill shutdown and improves efficiency by 15-25%.

  • Specifications

    Ball Mill Working Principle

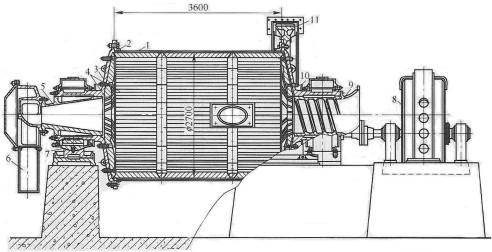

    ball mill

    Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

    Ball Mill Technology Data

    Model Rotary speed（r/min) weight(t) Input size(mm) Discharge size(mm) Capacity(t/h) Motor power (kw) Weight (t)
    Ф900×1800 39 1.5 ≤20 0.075-0.89 0.8-2 18.5 4.6
    Ф900×1800 39 2.7 ≤20 0.075-0.89 1-4 22 5.6
    Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 12.8
    Ф1200×4500 32 5 ≤25 0.074-0.4 1.6-5.8 55 13.8
    Ф1500×3000 27 7.5 ≤25 0.074-0.4 2-5 75 15.6
    Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 24.7
    Ф1830×3000 25 11 ≤25 0.074-0.4 4-10 130 28
    Ф1830×6400 24 21 ≤25 0.074-0.4 7-16 210 34
    Ф1830×7000 24 23 ≤25 0.074-0.4 8-18 245 36
    Ф2100×3600 23 19 ≤25 0.074-0.4 10-36 210 46
    Ф2200×4500 21 27 ≤25 0.074-0.4 12-23 280 48.5
    Ф2200×6500 21 35 ≤25 0.074-0.4 14-26 380 52.8
    Ф2200×7000 21 35 ≤25 0.074-0.4 15-28 380 54
    Ф2200×7500 21 35 ≤25 0.074-0.4 15-30 380 56
    Ф2400×4500 21 30 ≤25 0.074-0.4 18-45 320 65
    Ф2400×8000 20 36 ≤25 0.074-0.4 20-48 410 81
    Ф2700×3600 21 39 ≤25 0.074-0.4 19-75 400 83
    Ф2700×4000 20 40 ≤25 0.074-0.4 20-78 400 85
    Ф2700×4500 20 48 ≤25 0.074-0.4 22-85 430 89
    Ф3200×4500 18 65 ≤25 0.074-0.4 29-140 800 137
    Ф3200×5400 18 81.6 ≤25 0.074-0.4 30-180 800-1000 146
    Ф3600×4500 17 88 ≤25 0.074-0.4 35-210 1000 190
    Ф3600×6000 17 117 ≤25 0.074-0.4 38-240 1250-1500 220
    Ф3600×8500 17 144 ≤25 0.074-0.4 45-260 1800 260
