Stone crushing machine

We can supply all kinds of stone crusher for our customers such as: jaw crusher, hammer crusher, impact crusher, cone crusher and so on

VSI Series Sand Making Machine

Processing ability:60-260t/h

Max feeding size:50mm

Product Fineness:

Range of application:Almost all minerals, such as quartz, feldspar, mica, calcite, gypsum, fluorite, limestone, soil, clay, marble, granite, pebble, coal, slag, iron ore, copper ore, manganeseore, refractory material, glass, etc.

  • Overview

    Brief Introduction of VSI sand making machine:

    VSI Sand Making Machine from CLIRIK is a newly equipment with international advanced level, it is both a stone crushing machine and shaper machine. VSI Crusher is called Sand Making Machine, also called Shaper Machine , it dues to its structure and function that integrates two functions into one, it can be used as a crusher or a shaper by changing feeding methods and core structure of the crushing cavity. Thus, if you own the VSI Sand Making Machine, you have a crusher and a shaper in the same time. However, it’s the ideal artificial sand making machine.

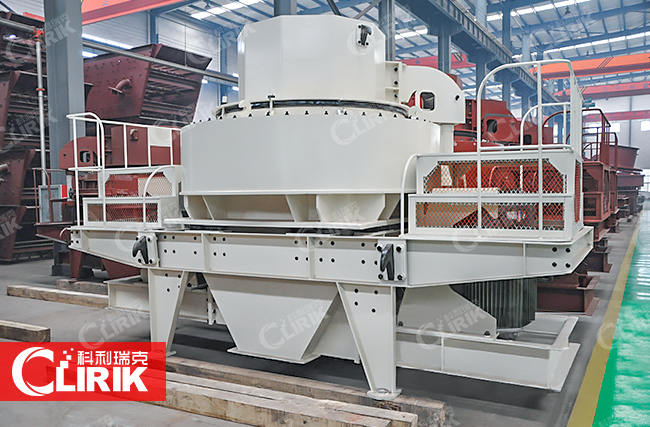

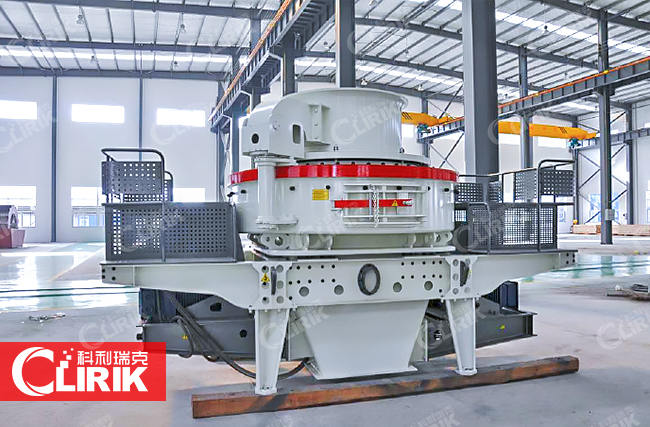

    VSI sand making machine

  • Benefit

    1. Little dust pollution and litter noise.
    2. High efficiency and low consumption.
    3. More most hard materials can be crushed.
    4. Final product of cubical shape and low cost.
    5. Wear resistant materials used in special structure.
    6. Strengthen structure and tenacity with rivet hot technique.
    7. High performance, convenient maintenance and installation.
    8. Advanced light oil lubrication system ensures shaft bearing lower temperature.
  • Specifications

    Model Feed at center&sides Feed at center Soft Material Hard Material REV (r/min) Power (kw) Motor Model Machine Size (mm)
    Capacity (t/h) Max.Feeding (mm)
    VSI7611 120-180 60-90 35 30 1700-1890 4-55×2 Y250M-4/55 4100×2250×2258
    VSI8518 200-260 100-130 40 35 1520-1690 4-90×2 Y280M-4/90 4140×2280×2425
    VSI9526 300-380 150-190 45 40 1360-1510 4-132×2 Y315M-4/132 4560×2450×2780
    VSI1140 450-520 225-260 50 45 1180-1310 4-200×2 Y315L2-4/200 5100×2690×3200

    Note: This specification is just referencing, any changes are subject to the products.
